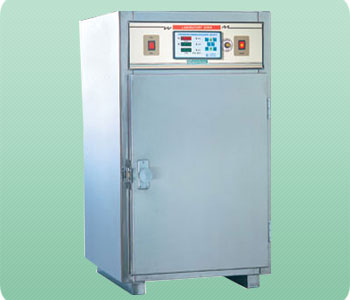

LABORATORY OVENS



Temperature Range : 502°C to 200°C Accuracy : ± 2.0°C
  • Exterior made of Mild Steel and Interior made of Stainless Steel .
  • Exterior and Interior made of Stainless Steel (S).

INTELLIGENT CONTROL SYSTEM
The controlling system having is PLC Base and PC communication on Ethernet and data acquisition system complying with 21 CFR Part 11. Forced air circulation for uniform temperature, Safety thermostat, Hermetically sealed compressor, with electronic time delay to safe gaurd compressor.

HEATING SYSTEM :
Long lasting stainless steel tubular heaters with s.s. fins.

SENSOR
Temperature transmitter 4-20mA used for measurement. Temperature in degree Celsius with 0.1°C resolution.

ALARMS :
Audio and visual alarms are generated for temperature / humidity variation, utility failure.

SAFETY :
The unit is provided with safety devices for temperature over shoot in case of malfunction.

STANDBY SENSOR :
When controlling sensor fails it automatically switch over to standby sensor.

The unit works on 230 Volts AC and 50Hz mains supply.

SELECTION GUIDE

Models
Capacity
Inner
Chamber
Dimension
External
Dimension
Tray
Exterior M.S
Exterior S.S
Cuft.
Liters
H x W x D (mm)
H x W x D (mm)
Nos.
NEC403PAC
NEC403PACS
3
90
450 x 450 x 450
880 x 600 x 800
2
NEC405PAC
NEC 105PACS
4
121
600 x 450 x 450
1050 x 600 x 800
2
NEC 108PAC
NEC 108PACS
8
216
600 x 600 x 600
1050 x 750 x 1000
2
NEC 112PAC
NEC 112PACS
12
324
900 x 600 x 600
1480 x 760 x 1040
3

* N.B. Custom build chambers also available
