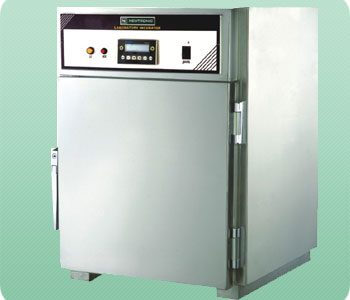

LABORATORY INCUBATORS

Temperature Range : 5°C to 60°C	Accuracy : ± 0.5°C
Temperature Uniformity : ±1.0°C

Exterior made of Mild Steel and Interior made of Stainless Steel.
Exterior and Interior made of Stainless Steel (S).

INTELLIGENT CONTROL SYSTEM
The controlling system having is PLC Base and PC communication on Ethernet and data acquisition system complying with 21 CFR Part 11.

HEATING SYSTEM
Long lasting stainless steel tubular heaters with s.s. fins.

SENSOR
Temperature transmitter 4-20mA used for measurement. Temperature in degree Celsius with 0.1°C resolution.

COOLING SYSTEM :
CFC free, the cooling system consists of hermetically sealed compressor coupled with evaporation coil and condenser, safe guarded by time delay circuit. Refrigerant 134A.

ALARMS :
Audio and visual alarms are generated for temperature / humidity variation, utility failure.

SAFETY :
The unit is provided with safety devices for temperature over shoot in case of malfunction.

STANDBY SENSOR :
When controlling sensor fails it automatically switch over to standby sensor.

The unit works on 230 Volts AC and 50Hz mains supply.

SELECTION GUIDE

Models		Capacity		Inner Chamber Dimension	External Dimension	Tray
Exterior M.S	Exterior S.S	Cuft.	Liters	H x W x D (mm)	H x W x D (mm)	Nos.
NEC 103PAC	NEC 103PACS	3	90	450 x 450 x 450	880 x 600 x 800	2
NEC 105PAC	NEC 105PACS	4	121	600 x 450 x 450	1050 x 600 x 800	2
NEC 108PAC	NEC 108PACS	8	216	600 x 600 x 600	1050 x 750 x 1000	2
NEC 112PAC	NEC 112PACS	12	324	900 x 600 x 600	1480 x 760 x 1040	3
NEC 116PAC	NEC 116PACS	16	440	900 x 700 x 700	1480 x 850 x 1130	3
NEC 121PAC	NEC 121PACS	21	600	1200 x 700 x 700	1780 x 850 x 1130	4
NEC 128PAC	NEC 128PACS	28	800	1200 x 800 x 800	1780 x 950 x 1230	4
NEC 134PAC	NEC 134PACS	34	1000	1500 x 800 x 800	1800 x 1600 x 950	5

* N.B. Custom build chambers also available
