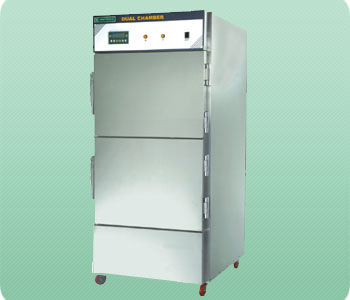

DUAL CHAMBERS



  • Temperature Suitable for 18 -24C, 20-25C, 30-35C, 35-37C, 40-45C & 55-60C .
  • Exterior made of Mild Steel and Interior made of Stainless Steel.
  • Exterior and Interior made of Stainless Steel (S)

INTELLIGENT CONTROL SYSTEM
The controlling system having is PLC Base and PC communication on Ethernet and data acquisition system complying with 21 CFR Part 11

SENSOR
 Temperature transmitter 4-20mA used for measurement. Temperature in degree Celsius with 0.1°C resolution.

COOLING SYSTEM :
CFC free, the cooling system consists of hermetically sealed compressor coupled with evaporation coil and condenser, safe guarded by time delay circuit. Refrigerant 134A.

ALARMS :
Audio and visual alarms are generated for temperature variation, utility failure.

SAFETY :
The unit is provided with safety devices for temperature over shoot in case of malfunction.

STANDBY SENSOR :
When controlling sensor fails it automaticallyswitch over to standby sensor.

The unit works on 230 Volts AC and 50Hz mains supply.

SELECTION GUIDE

Models
CH
Temp
Range
Capacity
Inner
Chamber
Dimension
External
Dimension
Tray
Exterior M.S
Exterior S.S
°C
Cuft.
Liters
H x W x D (mm)
H x W x D (mm)
Nos.
NEC106DRS
NEC106DRSS
Upper
10 -60
3
90
450 x 450 x 450
1800 x 600 x 850
2
Lower
10 -60
3
90
450 x 450 x 450
NEC116DRS
NEC116DRSS
Upper
10 -60
8
200
600 x 450 x 450
2100 x 750 x 1000
2
Lower
10 -60
8
200
600 x 450 x 450

* Dual Chambers available without cooling system for temperature range 5°C
above ambient to 60°C
