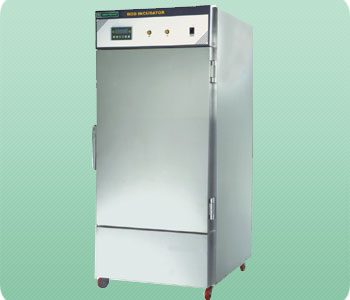

BOD INCUBATORS

Temperature Range : 10 °C to 60°C	Accuracy : ± 0.5°C
Temperature Uniformity : ±1.0°C

Temperature Suitable for 18 -24°C, 20-25°C, 30-35°C, 35-37°C, 40-45°C & 55-60°C .
Exterior made of Mild Steel and Interior made of Stainless Steel.
Exterior and Interior made of Stainless Steel (S).

INTELLIGENT CONTROL SYSTEM
The controlling system having is PLC Base and PC communication on Ethernet and data acquisition system complying with 21 CFR Part 11.

HEATING SYSTEM
Long lasting stainless steel tubular heaters with s.s. fins.

SENSOR
Temperature transmitter 4-20mA used for measurement. Temperature in degree Celsius with 0.1°C resolution.

COOLING SYSTEM :
CFC free, the cooling system consists of hermetically sealed compressor coupled with evaporation coil and condenser, safe guarded by time delay circuit. Refrigerant 134A.

ALARMS :
Audio and visual alarms are generated for temperature / humidity variation, utility failure.

SAFETY :
The unit is provided with safety devices for temperature over shoot in case of malfunction.

STANDBY SENSOR :
When controlling sensor fails it automatically switch over to standby sensor.

The unit works on 230 Volts AC and 50Hz mains supply.

SELECTION GUIDE

Models		Capacity		Inner Chamber Dimension	External Dimension	Tray
Exterior M.S	Exterior S.S	Cuft.	Liters	H x W x D (mm)	H x W x D (mm)	Nos.
NEC 108RS	NEC 108RSS	8	200	600 x 600 x 600	1340 x 750 x 1030	2
NEC 112RS	NEC 112RSS	12	324	900 x 600 x 600	1650 x 750 x 1030	3
NEC 116RS	NEC 116RSS	16	440	900 x 700 x 700	1650 x 850 x 1130	3
NEC 121RS	NEC 121RSS	21	600	1200 x 700 x 700	1950 x 850 x 1130	4
NEC 128RS	NEC 128RSS	28	800	1200 x 800 x 800	1950 x 950 x 1230	4
NEC 134RS	NEC 134RSS	34	1000	1500 x 800 x 800	1800 x 1600 x 950	5

* N.B. Custom build chambers also available
